COOL FLOW™
Construction equipment isn’t engineered to be dainty, but skid steers, backhoes and front-end loaders still have their limits. High temperatures and demanding attachment loads can overheat hydraulic systems and cause costly downtime. The Loftness® Cool Flow is a roof-mounted auxiliary hydraulic cooler that simultaneously cools hydraulic attachments and the machine at up to 150,000 BTUs per hour, so the work continues as long as you do.
Two Cool Flow models are available for power units of all sizes. The compact single-fan model is ideal for mid-frame skid steers and offers up to 95,000 BTUs per hour of cooling capacity. For larger units, the twin-fan model leads the industry with 150,000 BTUs per hour. Models have a 10-60 GM flow capacity.
The single-fan model provides 95,000 BTUs per hour cooling capacity. The twin-fan model provides 150,000 BTUs per hour.
The single-fan Cool Flow features a 16-inch-diameter fan. The twin-fan model has two 14-inch-diameter fans. The fans are automatically controlled by a thermostat.

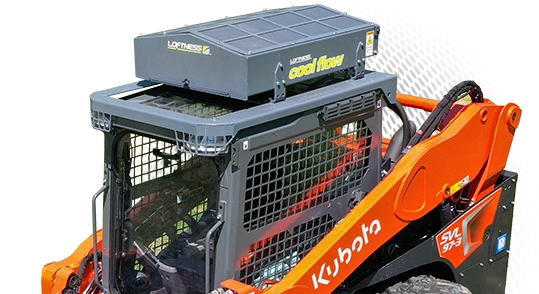

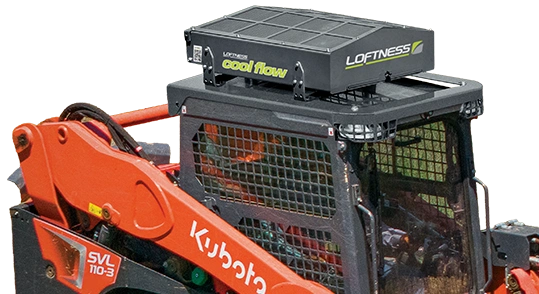

The Cool Flow includes mounting feet for permanently attaching the unit to a machine. This reduces contamination and attachment vibrations, as well as decreases the likelihood of damage from an impact. It also allows attachments to be hooked up and unhooked normally. Model-specific mounting kits and hydraulic hose kits are available for Takeuchi and Kubota.
The bottom screen slides out for convenient debris removal, and the heavy-duty top protective screen can be easily removed.
The Cool Flow is engineered to allow full hydraulic flow to the attachment from either direction with no risk of damage. This flexibility is highly useful for multiple attachment styles. The design also protects the cooler if an operator accidentally reverses hoses, or if a coupler becomes detached.
High quality craftsmanship, a heavy-duty frame and premium screens combine for a product that is built to perform under the most demanding working conditions.
SPECIFICATIONS
| Model | Twin-Fan (14CFISUV3) | Single-Fan |
|---|---|---|
| Flow Capacity | 38-60 GPM | 10-37.9 GPM |
| Core Construction | Aluminum Brazed | Aluminum Brazed |
| Cooling Fan Size | (2) 14 inch Diameter | 16 inch Diameter |
| Cooling Capacity | 150,000 BTU/hour | 95,000 BTU/hour |
| Width | 33.75 inches (0.86 m) | 29.50 inches (0.75 m) |
| Length | 44 inches (1.12 m) | 36.75 inches (0.94 m) |
| Height | 13.79 inches (0.35 m) | 12.75 inches (0.34 m) |
| Weight | 315 lbs (142.9 kg) | 223 lbs (101.2 kg) |
