STANDARD 24/30 MULTI CROP SHREDDER
The Standard 24/30 MultiCrop shredder line from Loftness® is built for tackling many acres of some of the toughest residue like BT corn. Featuring a time-tested design, Loftness 24- to 30- foot crop shredders are manufactured with unmatched dedication to quality engineering and craftsmanship. No other shredder will give you the on-demand and all-day performance like our line of multi-crop shredders.
Get 4% Cash Back on Select Equipment
The 24/30 crop shredder line comes standard with Loftness high-residue knives, which are perfect for corn, wheat, sorghum, grasses and other crops. Four other knife options are offered for other crop residue conditions.

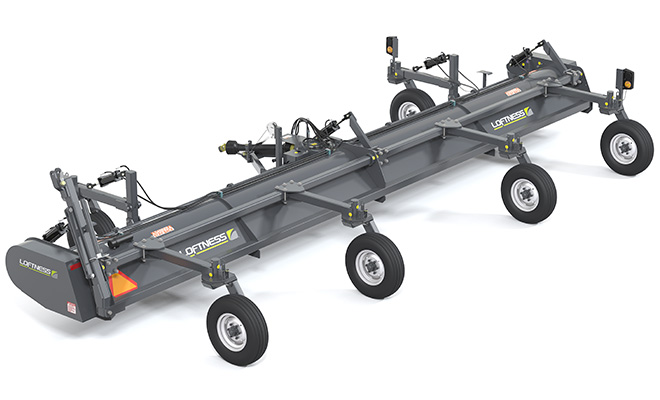

The standard crop shredder line features heavy-duty design, engineering and construction throughout.
Loftness crop shredders provide precise height adjustment for fine tuning performance and chop. Rear lifting choices include ratchets or hydraulic cylinders.
A standard feature on all Loftness shredder equipment, this field-proven and extremely reliable gearbox is rated at 280 HP. Rotor speeds available are 1,450, 1,700 or 2,000 RPM.
1-3/8-inch or 1-3/4-inch 1,000 RPM power takeoff. Includes over-running clutch on all models and constant velocity knuckle on all pull-types. Slip clutch is optional and standard on 30-foot models.
The Standard 24/30 comes equipped with Loftness high residue knives, perfect for corn, wheat, sorghum, grasses and more. It can also be configured with any of our other optional knife sets:
- Hard-surfaced cupped
- Hard-surfaced cotton
- Hard-surfaced high residue
- Combination
The 24/30 crop shredders can be configured as pull-type, semi- or fully-mounted models.
Efficient transfer of power via a four- or six-groove banded belt and spring loaded push-type idler system.
Wheel position is adjustable to accommodate different row widths.
Configurations for the 24/30 include up to four rigid or swivel wheels and two front rigid wheels with ratchets.
Factory-installed, this feature is available on the pull-type and fully-mounted models, except those equipped with bed rollers. Lifts all the support tires off the ground, making transport easy. Includes transport hitch.
Folding transport hitch includes jack stand.
SPECIFICATIONS
| Pull-Type With Rigid Rear Wheels | |||
|---|---|---|---|
| Size | 24' | 25' | 8m |
| Model | 288 | 300 | 315 |
| Pull-type Height | 36" | 36" | 36" |
| Pull-type Length | 135" | 135" | 135" |
| Cutting Width | 288" | 300" | 315" |
| Overall Width | 307" | 319" | 334" |
| Hitch Length | 40" | 40" | 40" |
| Weight in Pounds | 7500 | 7800 | 8200 |
| Number of Knives (High Residue/Cotton) | 272 | 288 | 312 |
| Number of Knives (Cupped) | 140 | 148 | 160 |
| Number of Rotors | 4 | 4 | 4 |
| Pull-Type With 6 Swivel Wheels | ||||
|---|---|---|---|---|
| Size | 24' | 25' | 8m | 30' |
| Model | 288 | 300 | 315 | 360 |
| Pull-type Height | 36" | 36" | 36" | 36" |
| Pull-type Length | 154" | 154" | 154" | 154" |
| Cutting Width | 288" | 300" | 315" | 360" |
| Overall Width | 307" | 319" | 334" | 379" |
| Hitch Length | 40" | 40" | 40" | 40" |
| Weight in Pounds | 7,500 | 7800 | 8200 | 9300 |
| Number of Knives (High Residue/Cotton) | 272 | 288 | 312 | 344 |
| Number of Knives (Cupped) | 140 | 148 | 160 | 176 |
| Number of Rotors | 4 | 4 | 4 | 4 |
| Fully-Mounted With Rigid Rear Wheels | |||
|---|---|---|---|
| Size | 24' | 25' | 8m |
| Model | 288 | 300 | 315 |
| Fully-mounted Height | 48" | 48" | 48" |
| Fully-mounted Length | 106" | 106" | 106" |
| Cutting Width | 288" | 300" | 315" |
| Overall Width | 307" | 319" | 334" |
| Hitch Length | 12" | 12" | 12" |
| Weight in Pounds | 7500 | 7800 | 8200 |
| Number of Knives (High Residue/Cotton) | 272 | 288 | 312 |
| Number of Knives (Cupped) | 140 | 148 | 160 |
| Number of Rotors | 4 | 4 | 4 |
| Fully-Mounted/Semi-Mounted With Swivels On Rear Only | ||||
|---|---|---|---|---|
| Size | 24' | 25' | 8m | 30' |
| Model | 288 | 300 | 315 | 360 |
| Fully-mounted Height | 48" | 48" | 48" | 48" |
| Fully-mounted Length | 126" | 126" | 126" | 126" |
| Cutting Width | 288" | 300" | 315" | 360" |
| Overall Width | 307" | 319" | 334" | 379" |
| Hitch Length | 12" | 12" | 12" | 12" |
| Weight in Pounds | 7500 | 7800 | 8200 | 9300 |
| Number of Knives (High Residue/Cotton) | 272 | 288 | 312 | 344 |
| Number of Knives (Cupped) | 140 | 148 | 160 | 176 |
| Number of Rotors | 4 | 4 | 4 | 4 |
| Fully/Semi-Mounted With Swivels On Rear & Rigid Front Wheels | ||||
|---|---|---|---|---|
| Size | 24' | 25' | 8m | 30' |
| Model | 288 | 300 | 315 | 360 |
| Fully-mounted Height | 48" | 48" | 48" | 48" |
| Fully-mounted Length | 145" | 145" | 145" | 145" |
| Cutting Width | 288" | 300" | 315" | 360" |
| Overall Width | 307" | 319" | 334" | 379" |
| Hitch Length | 12" | 12" | 12" | 12" |
| Weight in Pounds | 7500 | 7800 | 8200 | 9300 |
| Number of Knives (High Residue/Cotton) | 272 | 288 | 312 | 344 |
| Number of Knives (Cupped) | 140 | 148 | 160 | 176 |
| Number of Rotors | 4 | 4 | 4 | 4 |
